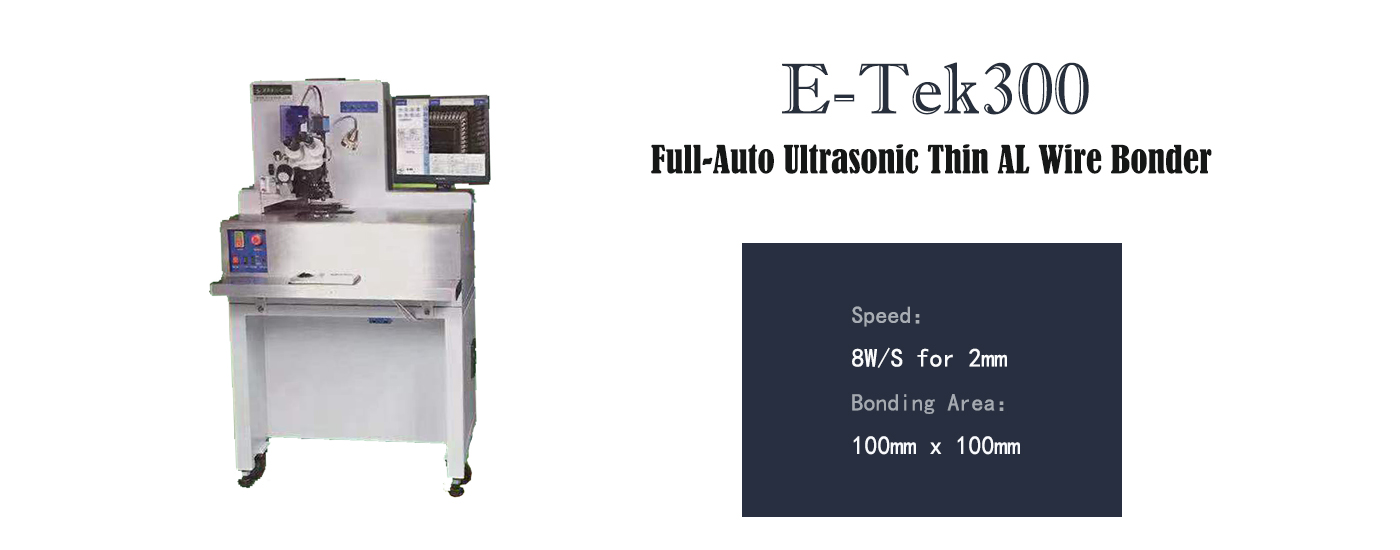

E-Tek300 Full-Auto Ultrasonic Thin AL Wire Bonder

Technical advantages



◆ Up to 8 wires/second for 2mm wire
◆ Strong T-motor ensures the table movement speed
◆ Applicable for the thin AL wire from 15-50um
◆ Deep recessed capability up to 5mm by 45° transducer

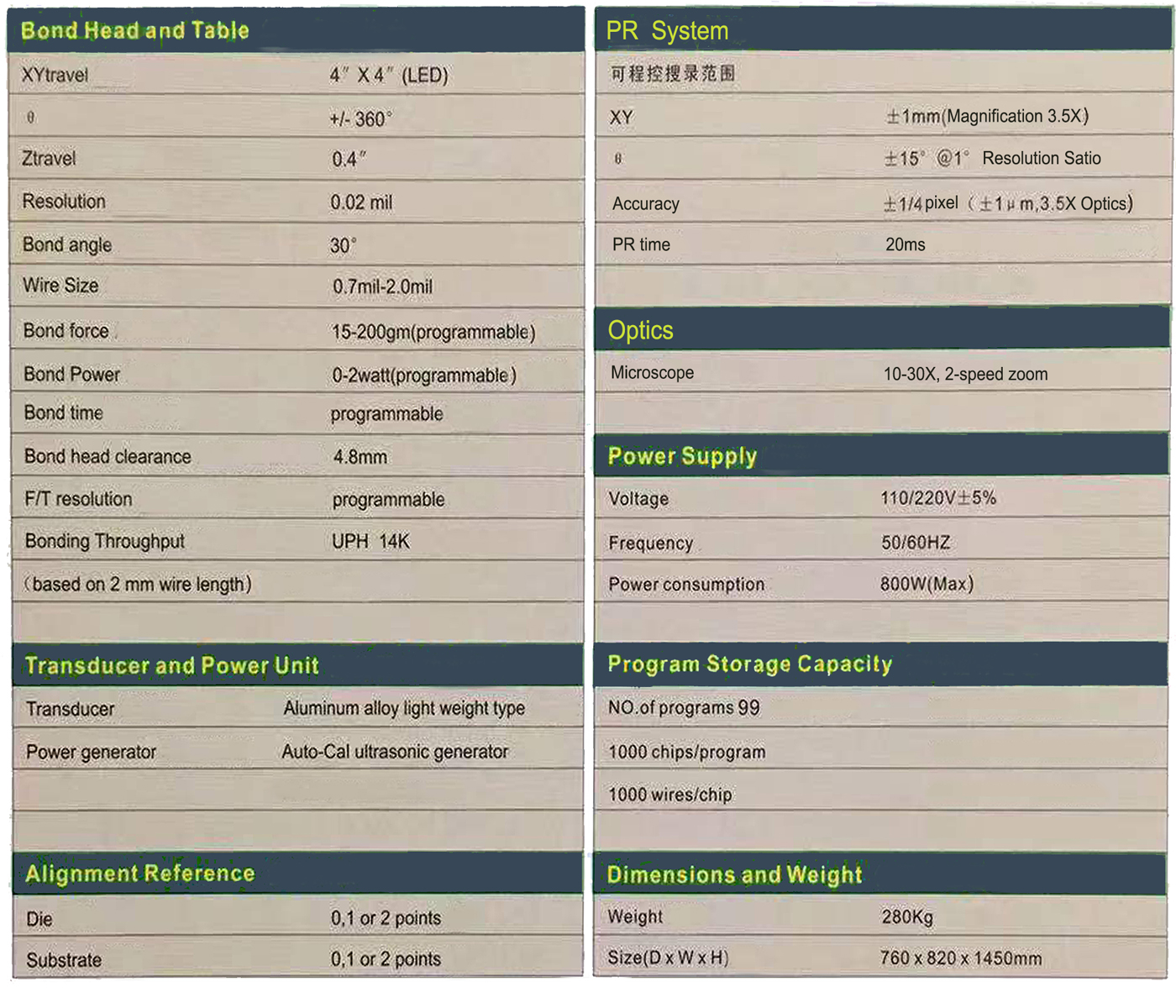

Specification parameters
